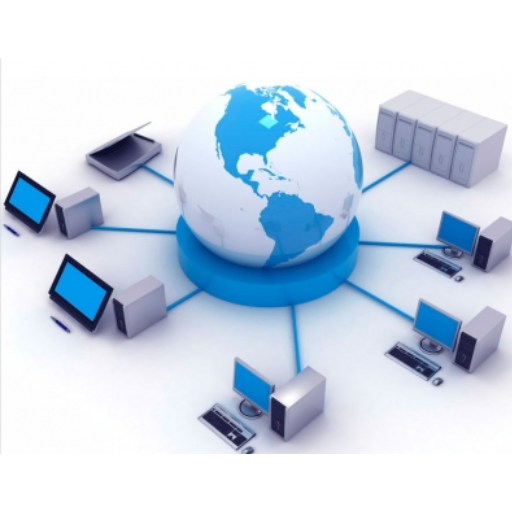

~ A Computer Network is a set of computers connected together for the purpose of sharing resources ~

~ COMPUTER NETWORK ~

PICTURE CREDIT: https://networking-communications.knoji.com/definition-of-computer-networks-and-its-advantages/

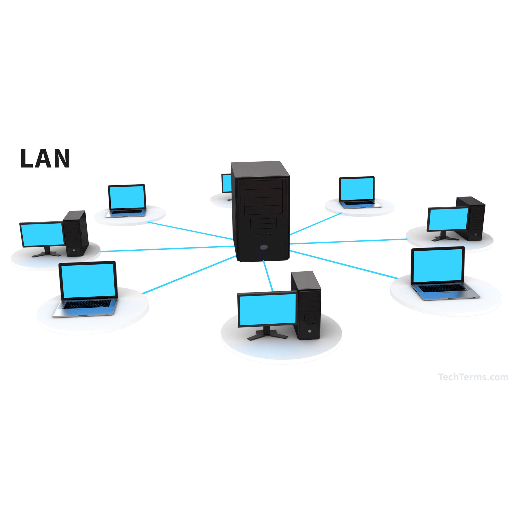

~ Technologies that connect many devices that are relatively close to each other, usually in the same building ~

~ LOCAL AREA NETWORK ~

PICTURE CREDIT: https://techterms.com/definition/lan

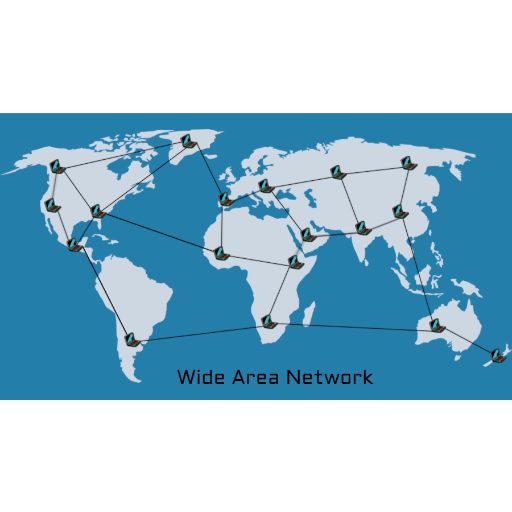

`~ WIDE AREA NETWORK ~

~ Technologies connect a smaller number of devices that can be many kilometers apart ~

PICTURE CREDIT: https://fossbytes.com/difference-lan-wan-man-can-vpn-ban-nan-san/

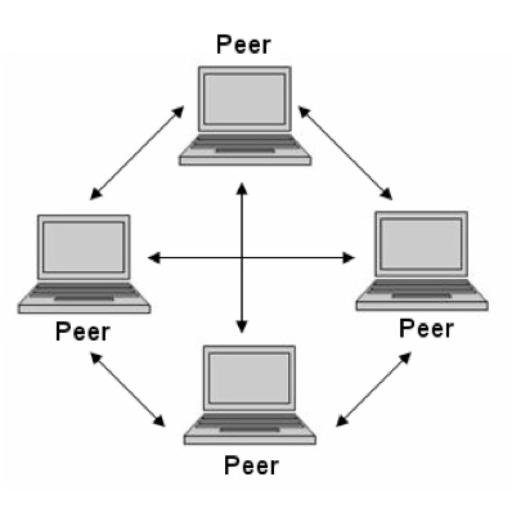

~ A type of network in which each workstation has equivalent capabilities and responsibilities ~

Peer-to- Peer Architecture (P2P)

PICTURE CREDIT: https://www.kullabs.com/classes/subjects/units/lessons/notes/note-detail/3042

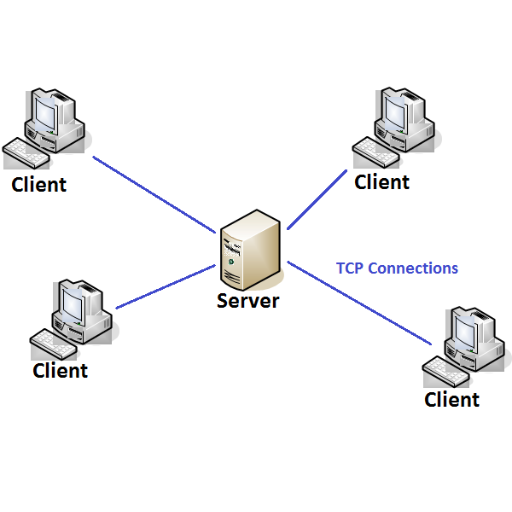

~ A network architecture in which a computer or process on the network is either a client or a server ~

Client- Server Architecture

PICTURE CREDIT: https://www.kullabs.com/classes/subjects/units/lessons/notes/note-detail/3042

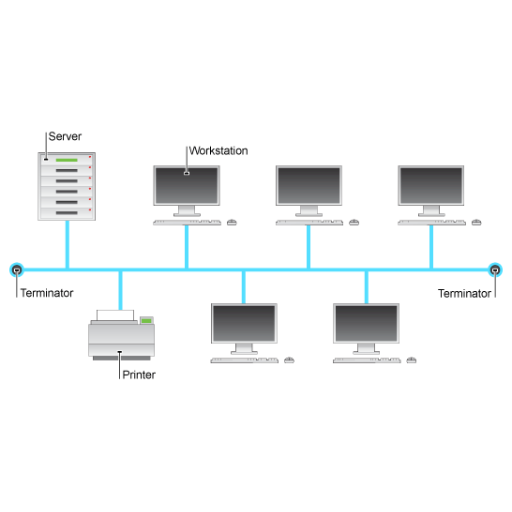

~ A daisy- chained like Christmas light. Each node is along the same backbone and information is sent from a node to travel along the backbone until it reaches it destination node ~

~ Bus Topology ~

PICTURE CREDIT: http://www.bbc.co.uk/schools/gcsebitesize/ict/datacomm/networktopsrev1.shtml

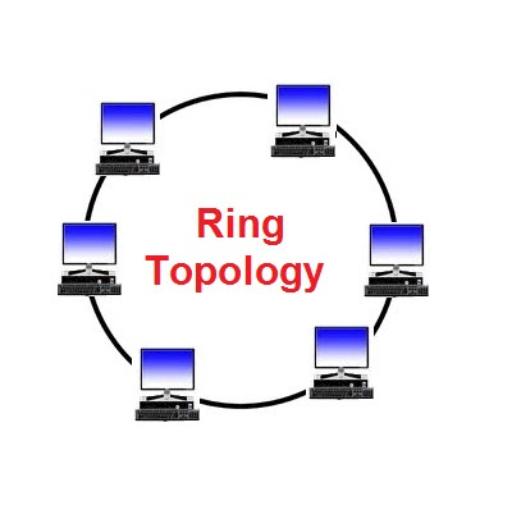

~ Ring Topology ~

Like a bus network, rings have the nodes daisy- chained. The difference is that the end of the network comes back around to the first node, creating a complete circuit.

PICTURE CREDIT: http://www.tekgrabs.com/2017/03/ring-topology.html

~ Star Topology ~

In a star network, each node is connected to a central device called a hub. The hub takes signal that comes from any node and passes it along to all the other nodes in the network.

PICTURE CREDIT: http://webpage.pace.edu/ms16182p/networking/star.html

~ Mesh Topology ~

In a mesh topology, each node is connected to every other node in the network. The primary advantage of this topology is its reliability.

PICTURE CREDIT: https://networksmania.wordpress.com/topics/

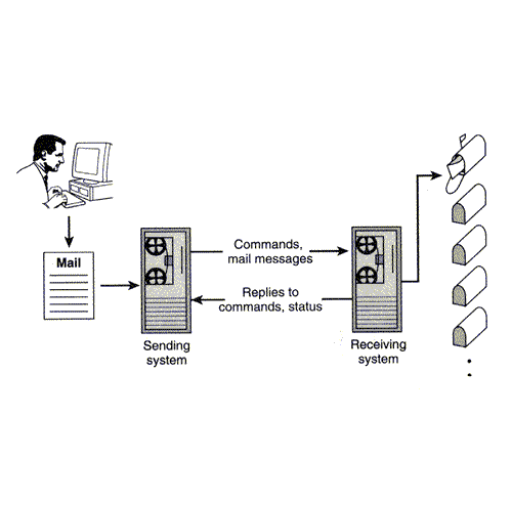

~ Protocol ~

An agreed- upon format for transmitting data between two devices.

PICTURE CREDIT: https://users.cs.cf.ac.uk/Dave.Marshall/PERL/node168.html

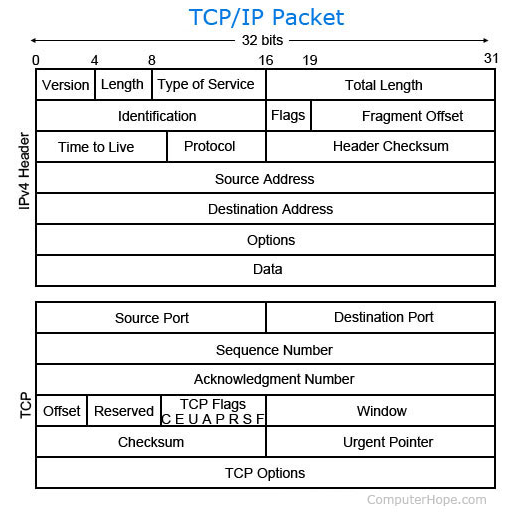

~ Packet ~

A piece of a message transmitted over a packet- switching network.

PICTURE CREDIT: https://www.computerhope.com/jargon/p/packet.htm

~ Router ~

A networking device that forwards data packets between computer networks,
